Plate and Soil Compactors

Product News Wednesday, September 10, 2008: Turner Morris / Midmacor

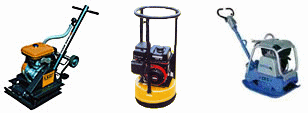

Vibrating rammers, plate compactors, round trench compactors, reversible plate compactors and pedestrian vibratory rollers. We supply the follwing compactors;

• Compactors : Plate Compactor
• Compactors : Reversible Compactor
• Compactors : Round Compactor
• Compactors : Soil Compactor Jumping Jack
• Compactors : Square Compactor
• Compactors : Vibratory Compactor
• Compactors : Vibratory Soil Plate Compactor
• Electric Compactor Plate
• Hand Held Soil Compactors
• Hydraulic Hammers Crushers Compactors
• Hydraulic Plate Compactors
• Industrial Compactors
• Jumping Jack Compactors
• Reversible Plate Compactors
• Roller Compactors
• Round Trench Compactors
• Soil Compactors
• Stomping Soil Compactors

SQUARE COMPACTORS
MODEL	WEIGHT	ENGINE	BASE SIZE	LENGTH EXCL HANDLE	DIMENSIONS L x B x H
THCPT80	80 kg	5 HP Petrol	400 x 585 mm	600 mm	750 x 400 x 850 mm
SC440	112 kg	5 HP Petrol	440 x 550 mm	600 mm	1200 x 500 x 1030 mm
SC440	115 kg	8 HP Petrol	440 x 550 mm	600 mm	1200 x 500 x 1030 mm
SC440D	125 kg	5 HP Diesel	440 x 550 mm	600 mm	1200 x 500 x 1030 mm
Ideal for compacting soil, stone chips or paving. Fitted with snorkel air filter for increased engine life. Fold down transport wheels allows simple manoeuvrability. Units available with petrol or diesel engines. Extremely robust. NB: SC350 - No wheels fitted.

ROUND COMPACTORS
MODEL	WEIGHT	ENGINE	BASE SIZE	DIMENSIONS L x B x H
SC450R	106 kg	5 HP Petrol	450 x 450 mm	450 x 450 x 920 mm
SC450D	116 kg	4 HP Diesel	450 x 450 mm	450 x 550 x 920 mm
Round compactor ideally suited for compacting in trenches or confined areas. Tubular frame protects against damage. Snorkel air filter is fitted as standard for increased engine life. Units available with petrol or diesel engines.

REVERSIBLE COMPACTORS
MODEL	WEIGHT	ENGINE	BASE SIZE	LENGTH EXCL HANDLE	DIMENSIONS L x B x H
TMCR-3	180 kg	5.5 HP Petrol	500 x 750 mm	800 mm	1380 x 400 x 1200 mm
TMCR-5	478 kg	10 HP Diesel	550 x 890 mm	800 mm	1380 x 400 x 1200 mm
Robust and compact with the ability to work in both directions, this unit is ideal for trench compaction or compaction of confined areas. Hydraulic handle control for direction selection. Available with petrol or diesel engines.

RAMMERS
MODEL	WEIGHT	ENGINE	BASE SIZE	DIMENSIONS L x B x H
SRV62H	65 kg	4 HP 4 Stroke Petrol (Honda GX100)	330 x 280 mm	690 x 380 x 1105 mm
SRV66R	72 kg	4 HP 4 Stroke Petrol (Robin EH12)	330 x 280 mm	690 x 400 x 1115 mm
THRAM70-EH12	70 kg	4 HP 4 Stroke Petrol	330 x 280 mm	850 x 420 x 1050 mm
TMNT701	80 kg	4 HP Diesel	330 x 280 mm	850 x 420 x 1050 mm
Rammers ideal for compaction of trench bottoms, back filled areas, foundations for roads and buildings. Rammers available in two stroke or 4 stroke petrol engines or with diesel engines.

PEDESTRIAN ROLLERS
MODEL	WEIGHT	ENGINE	WATER TANK	ROLLING WIDTH	VIBRATION CENTRIFUGAL FORCE	FREQUENCY	DIMENSIONS L x B x H
VV600HGX	525 kg	9 HP	45 Litre	600 mm	12 kN	60 Hz	2150 x 730 x 1050 mm
VV600H	525 kg	6.8 HP	45 Litre	600 mm	12 kN	60 Hz	2150 x 730 x 1050 mm
VV700H	755 kg	7.3 HP	45 Litre	700 mm	22 kN	55 Hz	2750 x 840 x 1250 mm
VV700HGX	755 kg	13 HP	45 Litre	700 mm	22 kN	55 Hz	2750 x 840 x 1250 mm
Hydrostatic drive rollers fitted with diesel engines or petrol engines. Diesel (H) Petrol (HGX). Infinitely variable speed of up to 3.2 km/h. Dead man's handle fitted as standard for added safety.
