Concrete Mixers

Product News Wednesday, September 10, 2008: Turner Morris / Midmacor

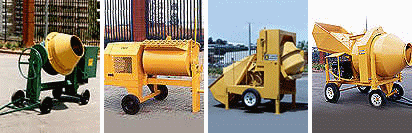

Standard and heavy duty gear tilt concrete mixers 80/65 to 350/260 litres. Hydraulic and heavy duty reverse drum concrete mixers 500/230 to 750/500 litres.

We supply the following concrete mixers;

• Concrete Mixers : Heavy Duty Reverse Drum Concrete Mixer
• Concrete Mixers : Hydraulic Concrete Mixer
• Concrete Mixers : Heavy Duty Concrete Mixer
• Concrete Mixers : Motar Concrete Mixer
• Concrete Mixers : Standard Concrete Mixer
• Concrete Pan Mixers
• Pan Mixers Concrete



MOTAR MIXERS
MODEL	MIX CAPACITY	WET MIX YIELD	WHEEL	MASS	DIMENSIONS L x B x H	ENGINE
MM 270	270 lit	240 lit	Solid Rubber	400 kg	1980 x 980 x 1520 mm	Petrol or Diesel or Electric

CONCRETE MIXERS - HEAVY DUTY
MODEL	DRUM VOLUME	MIX CAPACITY	WET MIX YIELD	WHEEL	MASS	DIMENSIONS L x B x H	ENGINE
CM 25	380 lit	280 lit	200 lit	Rubber or Bogey or Pneumatic tyres	400 or 420 or 500 kg	1980 x 980 x 1520 mm	None or Petrol or Diesel or Electric
TM 580	645 lit	540 lit	440 lit	Pneumatic tyres	1107 kg	2200 x 2200 x 2900 mm	None or Diesel or Electric
Model CM 25 available in site or high speed towing and mining configuration. Model TM 580 no hopper.

HYDRAULIC MIXERS
MODEL	DRUM VOLUME	MIX CAPACITY	WET MIX YIELD	WHEEL	MASS	DIMENSIONS L x B x H	ENGINE
BRO 500	550 lit	340 lit	230 lit	Pneumatic tyres	1020 kg	2150 x 1850 x 3100 mm	6.5 kw Diesel or Electric
BRO 565	565 lit	400 lit	300 lit	Pneumatic tyres	1200 kg	2300 x 1850 x 3100 mm	8.2 kw Diesel or Electric
BRO 600	640 lit	500 lit	350 lit	Pneumatic tyres	1450 kg	2700 x 1850 x 3100 mm	8.2 kw Diesel or Electric
Weigh batcher, Feed apron, 60 litre Water tank, Water meter with pressure reducer and filter.

HEAVY DUTY REVERSE DRUM MIXERS
MODEL	DRUM VOLUME	MIX CAPACITY	WET MIX YIELD	WHEEL	MASS	DIMENSIONS L x B x H	ENGINE
BIO 750	900 lit	750 lit	500 lit	Pneumatic tyres or Steel wheels	2100 kg	3250 x 2000 x 3200 mm	Diesel or Electric
Drum drive hydraulic. Optional extras: Hydraulic scraper, Weigh batcher, Feed apron and Rubber discharge cone.
