CellMite ProD Gage Interface Board

Product News Tuesday, August 28, 2007: Electro Standards Laboratories

CellMite ProD
High Performance Embedded Data Acquisition
And Strain Gage Interface Board

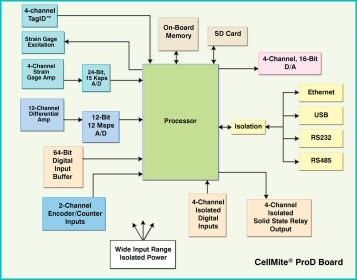

Electro Standards Laboratories announces its CellMite ProD High Performance Embedded Data Acquisition and Strain Gage Interface board, Model 4333. The Model 4333 is suitable for embedded applications that require high speed and high accuracy analog and digital data acquisition. The CellMite ProD features dual 24-bit independent strain gage channels with simultaneous sampling at 15K samples/second that can also be configured as quad 24-bit strain gage channels sampled at 5K samples/second. The CellMite ProD features 12 additional 12-bit analog input channels with a throughput of 1M samples/second. Digital data acquisition is also supported with 64-bits of simultaneously sampled digital inputs. The digital inputs can be sampled at 20M samples/second. The CellMite ProD has four 16-bit high performance analog output channels with user-specified scaling and offset with a range of +/-10 volts.

The communication channels are optically isolated in order to minimize system ground loops. For applications requiring on-board data storage, the CellMite ProD features 1MWord of onboard memory along with an SD Card Slot for additional bulk data storage. The CellMite ProD also supports dual quadrature encoder or pulsed inputs often used for measuring rotational position or velocity. CellMite ProD features a wide input voltage range of 10VDC-36VDC, along with 3kVDC isolation. CellMite ProD is designed for ruggedized applications and operates from -40 degrees C to +85 degrees C.
