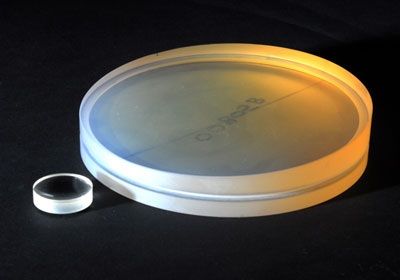

Off-Axis Parabolic Mirrors

Product News Wednesday, January 8, 2014: EngNet - Engineering Network

Unlike standard parabolic mirrors, Off-Axis Paraboloids (OAP) direct and focus incident collimated light at a specific angle, allowing unrestricted access to the focal point as well as reducing the size and minimising the weight of an optical design.

Working with the highest quality optical glasses - Optical Surfaces Ltd. produce standard OAP from 60mm to 600 mm in diameter. Benefiting from a uniquely stable manufacturing environment, and a highly skilled team of engineers and craftsmen, Optical Surfaces is able to routinely produce OAPs with surface accuracy to lambda/20 (peak-to-valley) depending upon off-axis angles. Using proprietary polishing techniques Optical Surfaces can, depending on the surface accuracy required, achieve the natural limit to the off-axis angle of around 25-30 degrees and surface micro-roughness of less than 1 nm. A range of coatings is available for standard and custom components from metallic with or without protective overcoat to multilayer dielectrics and ultra hard coatings.

Standard and custom design Off-axis Parabolic Mirrors from Optical Surfaces Ltd. have been chosen by many leading establishments around the world for undertaking applications including Schleiren, FLIR and MTF testing ; High power laser focusing ; Focusing upon astronomical objects ; Collimating reference wavefronts ; Beam expansion and Bore sight alignment for missile guidance systems.

Drawing upon over 50 years experience in producing high precision OAP mirrors – Optical Surfaces Ltd. has produced a handbook to enable users to get top performance from their optics. To download the handbook and product data sheet please visit http://www.optisurf.com/index.php/products/off-axis-paraboloids/. For further information please contact Optical Surfaces Ltd. on +44-208-668-6126 or sales@optisurf.com.

Over the last 50+ years – Optical Surfaces Ltd has established itself as a leading international manufacturer of top quality, high precision optical components and systems for organisations involved with fundamental physics, astronomy, space, defence and the environment. Optical Surfaces is a UK based company supplying the world with optical components and instruments including flats, spheres, aspherics, paraboloids, toroids and windows. The company specialise in large optics, beam expanders, collimators, precision mounts and prototypes.

-----------

Worldwide Headquarters

Optical Surfaces Ltd.
Godstone Road
Kenley
Surrey CR8 5AA
UK

tel. +44-208-668-6126
email sales@optisurf.com
web www.optisurf.com
