New 24 Volt, Planetary DC Gearmotor

Product News Sunday, November 18, 2012: Midwest Motion Products

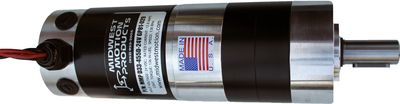

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear- Motor, Model # MMP-D33-455D-24V GP81-029 - Accepting any 24 Volt DC source, including battery power, this robust Gear Motor measures just 3.2” (max) Diameter, by 9.25” long and has a keyed output shaft of 19mm diameter by 40mm long. Easy mounting is accomplished with 4 “face mount” M6 threaded holes, equally spaced on a 65mm Dia. B.C. or an optional NEMA34 Flange, is also available.

The output of this fully reversible gearmotor is rated for 136 IN-LBS continuous torque, at 138 RPM, and 1062 IN-LBS (120 Nm) Peak Torque. Despite its compact size, and weight of approximately 11 pounds, it’s an efficient design, requiring just 14 Amps at 24 Volts DC to generate its Full-Load Torque. This translates into long battery charge, very LOW-NOISE operation, and lower cost drive electronics. Motor windings for 12v, 18v, 28v, 36v, 42v, 48v, 60v & 90 Volts are available.

• This versatile design can accommodate our Standard Failsafe Brakes, and/or Optical Encoders.
• “Power On” brake designs also available.
• This unique design is rated at an “IP 54” protection level for operation in harsh environments.
• Variable Speed can be accomplished with our fully compatible Speed Controls.

Samples are available FROM STOCK MATERIALS for rapid prototyping needs. Contact our Sales Offices for immediate prototype Shipments. BUILT IN USA!

Typical options available from the company include:

• Servo Motors with integral Optical Encoders
• Failsafe Brakes, Power-On Brakes, Analog Tachometers
• Planetary Gearheads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available.
• Motor Winding Options include 18V, 24V, 28V, 36V, 42V, 48V, 60V and 90 Volts DC.

MMP offers a variety of standard ancillary equipment including DC power supplies, DC Servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors. Custom Motor Shaft and mounting configurations are also available, with volume orders.

Typical applications include Wheel Chair Lifts & Wheel Chair Ramps, Medical Patient Lifts, Solar Tracking, Battery Operated Motors & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Semiconductor Processing Equipment, Actuators, Packaging & Labeling Machines, Woodworking & Metalworking Machines, Dynamic Displays for Tradeshows and many other applications requiring precise, powerful motion control.
