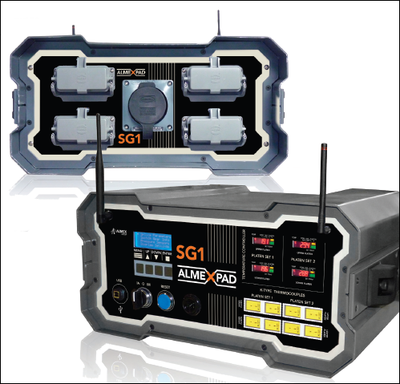

SG1 Switchgear Box
Product News Monday, October 22, 2012: Shaw Almex Africa / Almex Group
The Almex SG1 control panel is the most sophisticated yet easy to use system in the world. It integrates vulcanizer operation, pressure reporting, and temperature reporting all into one compact lightweight unit.
The operator can plug the unit into the vulcanizer select the belt he is splicing from a library of cure profiles and the unit will take over eliminating any errors.
The SG1 controls twice as many platens as the T4 control system it replaces yet it is housed in specially designed compact enclosure which is sealed to IP54 standards. In an industry first the SG1 monitors the multiple platens and ensures that they all heat up together.
Features and Benefits:
• Now controls and displays 4 platen controls in real time
• Has unlimited recipe input for cure profiles
• Cure profiles can have multiple set points and dwell times
• Easy to use text screen for entering values
• USB data port for communications and data logging
• Fully automatic control which monitors platens and ensures even heating
• Collects and reports pressure values wirelessly
• Controls pump unit during splice for fully automatic control
• Includes 8 point thermocouple input and reporting
• New crush resistant lightweight aluminum housing
• Connects wirelessly to new Almex XPAD for comprehensive splice reporting
• Replaces Almex T4 with plug and play connectivity
