New LED Strobe Warning Lights for Heavy-Duty Machinery
Product News Monday, October 28, 2019: Mimic Components CC

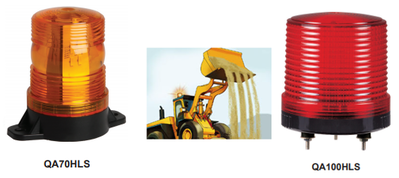

Models
QA70HLS-Ø70mm & QA100HLS-Ø100mm.
Applications
Suitable for small machines and equipment to Agriculture, Civil Roadworks, Construction, Mining and the likes.
Common Specifications
(QA70HLS/ QA100HLS) • Uses high brightness LED diffusion system that allows for operation outdoors in intense sunlight conditions • Superior fully enclosed structure durable, excellent vibration and shock resistant and can withstand storm and severe dust environments (IP66) • Materials : Lens-PC, Housing-ABS+GF(for QA70HLS)/ ABS(for QA100HLS) • Ambient operating temperature : -30°C to +50°C • Protection rating : IP66 • Vibration resistant and shock-proof : can withstand 15g of vibration and 100g of shock.
QA70HLS LED Strobe Warning Light
Mountable with two bolts on the main structure of the warning light for convenient assembly • Flashing rate : 45-55 flashes/min • Voltage: DC12V-24V • Current Max 0.620A • Colour Red & Amber.
QA100HLS LED Strobe Warning Light
Mountable with two bolts on the main structure of the warning light for convenient assembly • Suitable for small agricultural machines • Flashing rate : 60-80 flashes/min • Voltage: DC12V-24V • Current Max 1.200A • Colour Red & Amber.
Wiring Instructions
QA70HLS Model : External power line standard UL1015 AWG18(0.75sq)×2C 400mm • QA100HLS Model : External power line standard KSC3304 0.85sq×2C 400mm • Both models can be wired regardless of polarity.
