Thermally Conductive Epoxy Delivers High Temperature Resistance & Outstanding Electrical Insulation
Product News Tuesday, December 14, 2010: Master Bond Inc

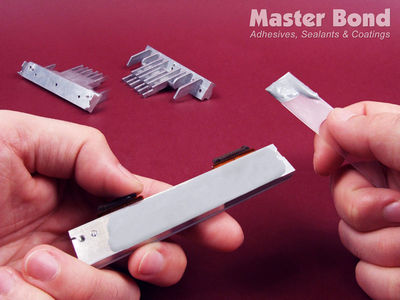

HACKENSACK, NJ - December 14, 2010 - Master Bond has developed a highly thermally conductive epoxy system that is specially designed to help mitigate the issues associated with tightly packed components and miniaturized electronic circuits. With a thermal conductivity over 22 BTU/in/ft²/hr/ºF and serviceability from -60 to 400°F, Master Bond EP21ANHT delivers outstanding performance in the most demanding microelectronic applications. The cured adhesive is also a superior electrical insulator, further expanding its usefulness.
This two component adhesive, sealant, and coating has a convenient 1 to 1 mix ratio by weight or volume and offers room temperature and faster elevated temperature cures. EP21ANHT has a low coefficient of thermal expansion of 18-20 in/in x 10
-6/ºC, a dielectric strength of >400 volts/mil, and a tensile shear strength greater than 1,000 psi. It resists a wide range of chemicals and adheres well to a variety of substrates.
EP21ANHT is available in pint, quart, gallon and 5 gallon kits.
