Flat Top Motorised Stage for Upright Microscopes

Product News Monday, September 14, 2015: Prior Scientific Instruments Ltd

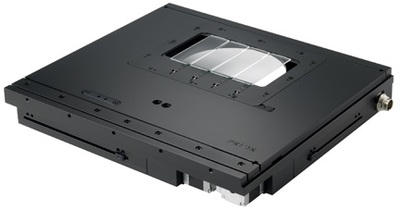

The H101F flat top motorised stage from Prior Scientific is suitable for a wide range of upright microscopes and offers an unmatched combination of precision, reliability and convenience.

The thin, flat design of the H101F stage maximises obstruction free space enabling easy convenient sample loading / unloading and unimpeded 360 degrees rotation of microscope nosepiece and objectives without risk of damage to the microscope, stage, inserts or the sample itself. Ultra low profile sample holders facilitate the use of high NA objectives / condensers while the latest in miniature high torque motors facilitate access to the condenser and other microscope adjustments.

Precision movement is guaranteed over the full 114mm x 75m travel on a H101F flat top stage. The mean uni-directional repeatability is 0.2 µm with a maximum speed of approximately 100 mm/s.  Optional embedded high resolution XY encoders enable ultra high precision (0.01 µm) positioning.

Adding versatility to precision, the H101F weighs just 4 kg, but is able to take loads of up to 10 kg.  The large sample holder design area on H101F flat top stages accommodates a variety of applications such as large tissue sections and other custom sample holders.

The H101F features smaller gauge stage cables which simplify cable routing. Older sample holders are also compatible with the H101F by adding a simple adapter plate.

Patented Intelligent Scanning Technology (IST) comes as standard on the H101F further increasing the accuracy of the stage’s movement. The H101F stage is controlled by the Prior Scientific ProScan® III system which is easily integrated into most imaging software packages, allowing the H101F to become fully integrated into your overall imaging process.

For further information contact Prior Scientific on uksales@prior.com / +44-1223-881711 or visit www.prior-scientific.co.uk//Products/Motorized-Stages/H101P2F.aspx?fid=2

Prior Scientific has been manufacturing top quality, high performance equipment and instruments for optical microscopy since 1919. Prior Scientific produces a wide range of motorised stages, system controllers, robotic sample loaders and illumination devices. To find out more about this range of products please visit www.prior.com

---------------------
