Entrained Gas Management EGM now available for twin straight tube Coriolis flowmeters
Product News Friday, June 12, 2015: KROHNE Pty Ltd
- The OPTIMASS 1400 and 2400 now available with Entrained Gas Managemetn EMG: no loss of measurement with gas entrainment up to 100%.
- Indication od configurable alarm forthe user to inprove processes by indentifying transient gas entrainments.
In the past gas entrainments in liquid media presented a huge challenge for mass flowmeters because the relative movement between gas and fluid dampens the amplitude of the measuring tube. This dampening leads to inconsistent sensor amplitudes,which interfere with the electronics` capability to determine the actual resonant freaquency. While other mass flowmeters simply "freeze" their last stable reading to cover this "loss of measurment", OPTIMASS flowmeters with EGM are able to follow and correct the varying amplitudes. This is achieved for entrained gas up to 100% of volume and continues to present an actual measured reading,together with an indication or configurable alarm for the user. This indication can be very helpful to improve processes by identifying transient gas entrainments.
The EGM feature is mainly relying on the fast ,completely digital ,signal prcessing of the MFC 400 signal converter. The MFC 400 also provides enhanced diagnostics and status indications according to NAMUR NE 107.
OPTIMASS 1400 is a universal coriolis mass flowmeter for standard applications with liquids and gases. With it`s stainless steel twin straight tube design ,itcan be drained and cleaned easily, and presents a cost effective solution fo accurate measurement of mass or volume flow, density and temprature in a variety of applications up to 130 degrees Celcius .
OPTIMASS 1400 features an optimised flow divider for minimum pressure loss . Next to standard flange process connections DN15- DN 80 it supports a wide range of industry standard hygienic connections.
OPTIMNSS 2400 is a coriolis mass flowmeter for bulk and volume flow of liquids an gases. Originally developed to meet custody transfer applications in the oil and gas industry,it suits bulk,storage/loading /unloading and high volume measurement of products like syrup,molasses and raw chemicals as well. For flow rates of up to 2,300,00 kg/h ,OPTIMASS 2400 is available in sizes DN100 - DN300 with NACE compliant stainless steel measuring tubes. The Super Dupelx option offers a maximum operating pressure of 180 bar g .For bulk measurement in the food and beverage industry ,hygienic connections are available (DN100 only)

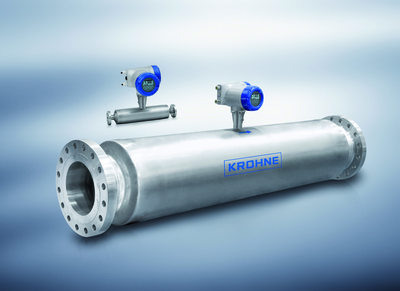

Image is a Twin straight tube Coriolis flowmeter OPTIMNSS 1400 and OPTIMASS 2400.
