New 24V Integrated Electric Actuators are rated to 500N max. thrust

New 24V Integrated Electric Actuators are rated to 500N max. thrust

Product News Monday, March 30, 2015: Servo2Go.com Ltd.

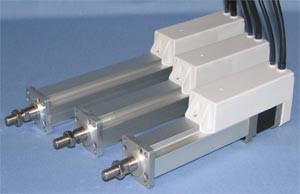

Servo2Go.com has just added remarkable new additions to its broad range of cost-effective 24V electric linear actuators from Dyadic Systems.  The SCN6 series actuators are compact yet powerful integrated mechatronic cylinders that feature a motor, encoder, drive and actuator in one integral package.

Dyadic Systems has developed the linear actuator drive mechanism such that the screw and nut are optimized for high accuracy, long life and low cost while delivering high speed and peak thrust.  This blend of low-cost and high performance could only have been realized by the advanced technology of Dyadic Systems.  These new product concepts give engineers a wider range of options to eliminate over-design.



SCN6 series Mechatronics Cylinders are available in stroke lengths to 300mm and 500N (51kgf) maximum thrust and are constructed using an extruded aluminum body with 303 stainless for the shaft and rod tip.  Actuators can easily be operated via 24VDC signals from PLCs or relays, and can be connected in networks of up to 16 axes.   Servo Actuators from Dyadic feature:



• Teach pendant, PLC pendant or PC Tool Kit programmable

• +-0.1mm repeatability

• 0.3mm backlash

• 50-300mm stroke versions

• Up to 200mm/sec max. speed

• 16 discrete position program capacity

• IP40 sealed, with optional IP54 sealing

• Electric actuators - programmable in 15 minutes!

• The SCN6 starts from only $465 US/ea!

• Moves can be relative, absolute, force controlled, and more

• All actuators run on 24VDC - easy to connect to your existing power supply!

• Air cylinder replacement mode and move sequencing available in the cylinder!
