Heap leach pads lined with HDPE
Product News Tuesday, February 2, 2010: Engineered Linings (Pty) Ltd.
Client Goldfields Ghana Ltd.
Project Phase 2 - Tarkwa Gold Mine, Ghana
Consultant Metago Environmental Engineers
Liner Specification 1,5mm HDPE
Size 390 000m²
Application Details:

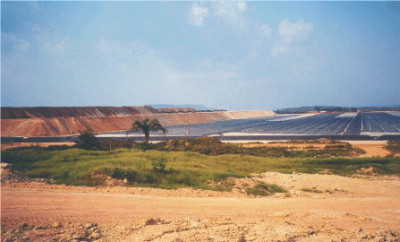

Engineered Linings was contracted through AMS (African Mining Services) to line Phase 2 of the Goldfields Ghana Heap Leach Project in Tarkwa. This involved the installation of 390 000m² of 1,5 mm thick HDPE liner to 6 pads, separated by divider berms.
A leaching solution of sodium cyanide is sprayed on the 8 - 10m high lifts of crushed gold bearing ore to extract the gold. The function of the HDPE liner is to capture the “pregnant solution’’ at the base of the heaps and lead it, via launders, to the containment pond for processing. The liner installation took 3,5 months to complete.
The lining was to be durable enough to withstand the load of the ore, ultimately stacked up to 40 metres high, and the chemical attack. 1,5mm thick Hexene based HDPE was specified. Engineered Linings had this material shipped to Takoradi in Ghana and then transported overland to Tarkwa.
Over 40 labourers from the local village were used and their rates and hours had to be negotiated with the village chief. Credit must be given to our 6 technical staff members who controlled and supervised the installation.
Other Heap Leach Pad projects
Iduapriem Gold Mine - Ghana - 110 000m²
Suzdal Gold Mine - Kazakhstan - Phase 1,2,3 - 99 000m²
Yatela Gold Mine - Mali - Pads 1,2,3,4,5,6,7...15 - 1 903 400m²
Tarkwa Gold Mine - Ghana - Phases 2,3,&4 - 1 456 700m²
Blue Ridge Gold Mine Project - Ghana - 473 100m²
Tarkwa Gold Mine - Goldfields, Ghana - Phase 5 - 931 500m²
Teberebie Gold Mine - Ghana - 167 000m²
Tsumeb Corporation - Namibia - 1 260m²
Angovia Gold mine - Ivory Coast - 221 000m²
Kalsaka Gold Mine - Burkina Faso - 288 000m²
Zeravshan Gold Mine & Dam - Tajikistan - 65 000m²
Amesmessa Gold Project - Algeria - 156 640m²
